주요설비
주요설비

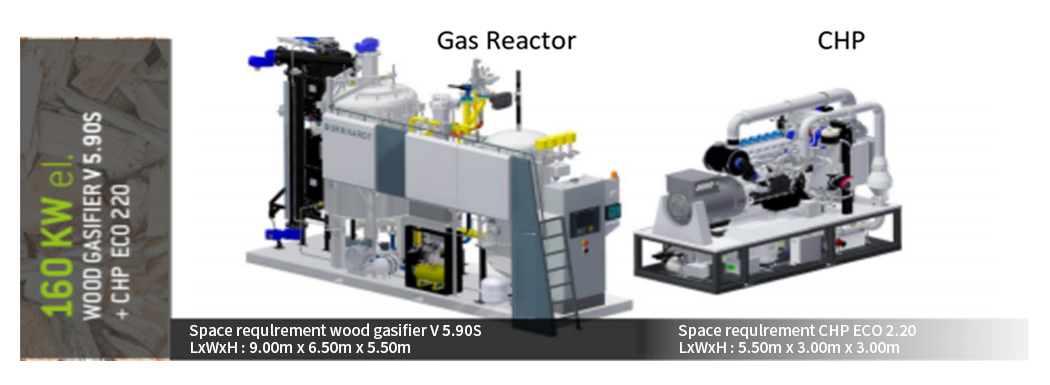

Gas reactor x 1EA → 전력 : 160kW 온열 : 240kW (750g/kWh)

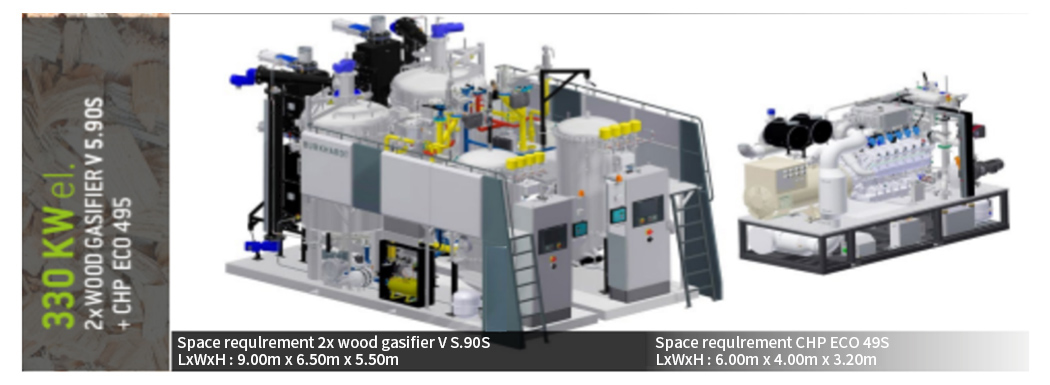

Gas reactor x 2EA → 전력 : 330kW 온열 : 485kW (730g/kWh)

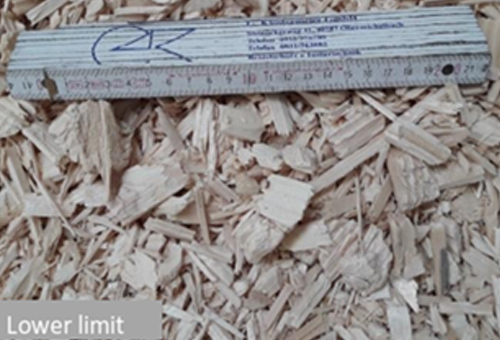

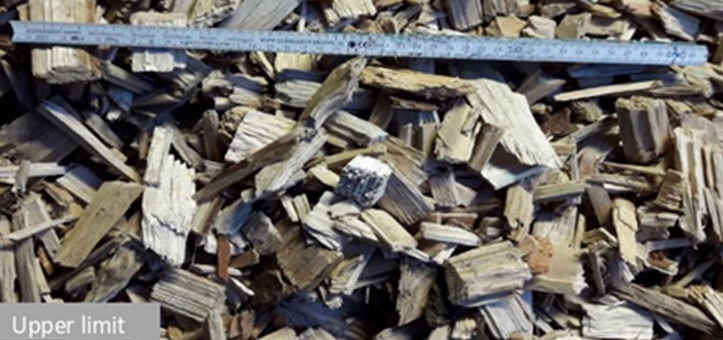

The Quality of thewood chips
· 입자 크기 분포 : P31S and < 2 mass-% [< 15mm]
| Class | Main fraction (구격) | Finefraction (미세분율) | Grobanteil (개략적인 비율) | ||
|---|---|---|---|---|---|
| (min, 60 mass-%) | mass-% (≤3.15mm) | mass-% (length of a partcle, mm) | max.particle length, mm | max.cross-sec-tional area, cm2 | |
| P31S | 3.15mm ≤ P ≤31.5mm | ≤ 10% | ≤ 6% > 45mm | ≤ 150mm | ≤ 4cm2 |
Moisture content(수분량) : ≤10mass-%
Ash content(재 함량) : ≤1.0mass-% in dry mass
※ 불연재는 제외 : 흙, 돌, 금속 등
